Sistemas de Impermeabilización

IMPERMEABILIZACIÓN
Bajo Solado

Con barrera de vapor y aislación térmica

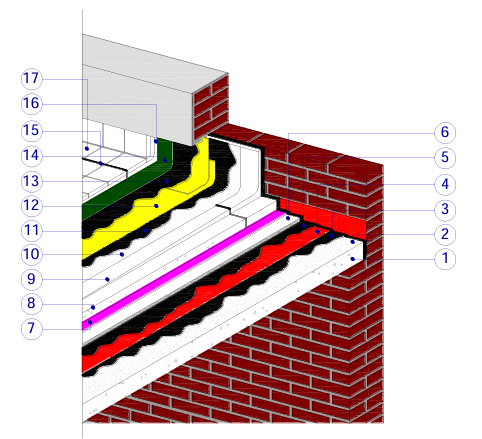

diagrama bajo solado
  1. 1 - Estructura
  2. 2 - Imprimación asfáltica
  3. 3 - Asfalto Plástico en caliente
  4. 4 - Lámina FIBRAPLAS PAL 20
  5. 5 - Adhesivo asfáltico en caliente
  6. 6 - Placa aislante FIBRAPOR 30 CP
  7. 7 - Protección FIBRAPLAS STICK
  8. 8 - Contrapiso con pendiente.
  9. 9 - Carpeta cementicia
  10. 10 - Primer asfáltico
  11. 11 - Asfalto Mod. en caliente ELASTIFAL T
  12. 12 - Membrana FIBRAPLAS GTN 20
  13. 13 - Asfalto Mod. en caliente ELASTIFAL T
  14. 14 - Membrana FIBRAPLAS GTN 20
  15. 15 - Junta de dilatación
  16. 16 - Carpeta cementicia
  17. 17 - Solado de terminación
A - ESTRUCTURA.
B - BARRERA DE VAPOR
Sistema BASE ÓPTIMO REFORZADO
Primera capa Polietileno o Aluminio FIBRAPLAS PAL 20 FIBRAPLAS GTAL 20
C - AISLACIÓN TÉRMICA
Sistema BASE ÓPTIMO REFORZADO
Primera capa Placa aislante Placa aislante Placa aislante
Segunda capa Protección asfáltica FIBRAPLAS STICK FIBRAPOR 30 CP
D - CONTRAPISO CON PENDIENTE Y CARPETA
E- AISLACIÓN HIDRÁULICA
Sistema BASE ÓPTIMO REFORZADO
Primera capa FIBRAPLAS GTN 40 FIBRAPLAS GTN 20 FIBRAPLAS GTN 40
Segunda capa FIBRAPLAS GTN 20 FIBRAPLAS GTN 40
F - CARPETA CEMENTICIA Y SOLADO DE TERMINACIÓN.

IMPERMEABILIZACIÓN
Autoprotegida sobre losa

Con barrera de vapor y aislación térmica

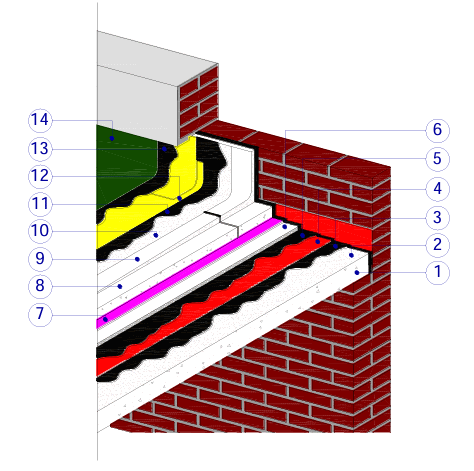

diagrama sobre losa
  1. 1- Estructura
  2. 2- Imprimación asfáltica
  3. 3 - Asfalto Plástico en caliente
  4. 4 - Lámina FIBRAPLAS PAL 20.
  5. 5 - Adhesivo asfáltico en caliente
  6. 6 - Placa aislante FIBRAPOR 30 CP
  7. 7 - Protección FIBRAPLAS STICK
  8. 8 - Contrapiso con pendiente
  9. 9 - Carpeta cementicia.
  10. 10 - Primer asfáltico.
  11. 11 - Asfalto Mod. en caliente ELASTIFAL T
  12. 12 - Membrana FIBRAPLAS GTN 20
  13. 13 - Asfalto Mod. en caliente ELASTIFAL T
  14. 14 - Membrana FIBRAPLAS GM 40
A - ESTRUCTURA.
B - BARRERA DE VAPOR
Sistema BASE ÓPTIMO REFORZADO
Primera capa Polietileno o Aluminio FIBRAPLAS PAL 20 FIBRAPLAS GTAL 20
C - AISLACIÓN TÉRMICA
Sistema BASE ÓPTIMO REFORZADO
Primera capa Placa aislante Placa aislante Placa aislante
Segunda capa Protección asfáltica FIBRAPLAS STICK FIBRAPOR 30 CP
D - CONTRAPISO CON PENDIENTE Y CARPETA
E - AISLACIÓN HIDRÁULICA
Sistema BASE ÓPTIMO REFORZADO
Primera capa FIBRAPLAS GM 40 FIBRAPLAS GTN 20 FIBRAPLAS GTN 40
Segunda capa FIBRAPLAS GM 40 FIBRAPLAS GM 40

IMPERMEABILIZACIÓN
Bajo Jardín

Con barrera de vapor

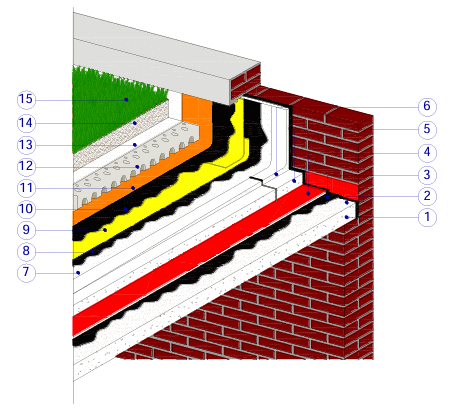

diagrama bajo jardin
  1. 1- Estructura
  2. 2 - Imprimación asfáltica.
  3. 3 - Asfalto Plástico en caliente.
  4. 4 - Lámina FIBRAPLAS PAL 20.
  5. 5 -Contrapiso con pendiente.
  6. 6 - Carpeta cementicia.
  7. 7 - Primer asfáltico.
  8. 8 - Asfalto Mod. en caliente ELASTIFAL T
  9. 9 - Membrana FIBRAPLAS GTN 20
  10. 10 - Asfalto Mod. en caliente ELASTIFAL T
  11. 11 - Membrana FIBRAPLAS GM JARDIN
  12. 12 - Placa filtrante FIBRADRIN
  13. 13 - Manto Filtrante.
  14. 14 - Tierra vegetal.
  15. 15 - Césped.
A - ESTRUCTURA.
B - BARRERA DE VAPOR
Sistema BASE ÓPTIMO REFORZADO
Primera capa Polietileno o Aluminio FIBRAPLAS PAL 20 FIBRAPLAS GTAL 20
C - CONTRAPISO CON PENDIENTE Y CARPETA
D - AISLACIÓN HIDRÁULICA
Sistema BASE ÓPTIMO REFORZADO
Primera capa FIBRAPLAS GTN 20 FIBRAPLAS GTN 20 FIBRAPLAS GTN 40
Segunda capa FIBRAPLAS GTN 20 FIBRAPLAS GM JARDIN FIBRAPLAS GM JARDIN
E - CAPA DRENANTE Y MANTO FILTRANTE
Sistema BASE ÓPTIMO REFORZADO
Primera capa Carpeta + Grava suelta FIBRADRAIN Carpeta + FIBRADRAIN
Segunda capa Manto Filtrante Manto Filtrante Manto Filtrante
F - TIERRA VEGETAL Y CÉSPED.
